Profile:
Equipment Overview
This device is developed in accordance with the DL/T976-2017 power industry standard and is suitable for power frequency withstand voltage testing of protective equipment such as insulating clothing, insulating trousers, insulating shawls, insulating sleeves, and insulating blankets. It supports multi-voltage level detection from 0 to 50kV. It adopts a stainless steel frame and the electrodes are made of stainless steel.
Features:
Equipment composition

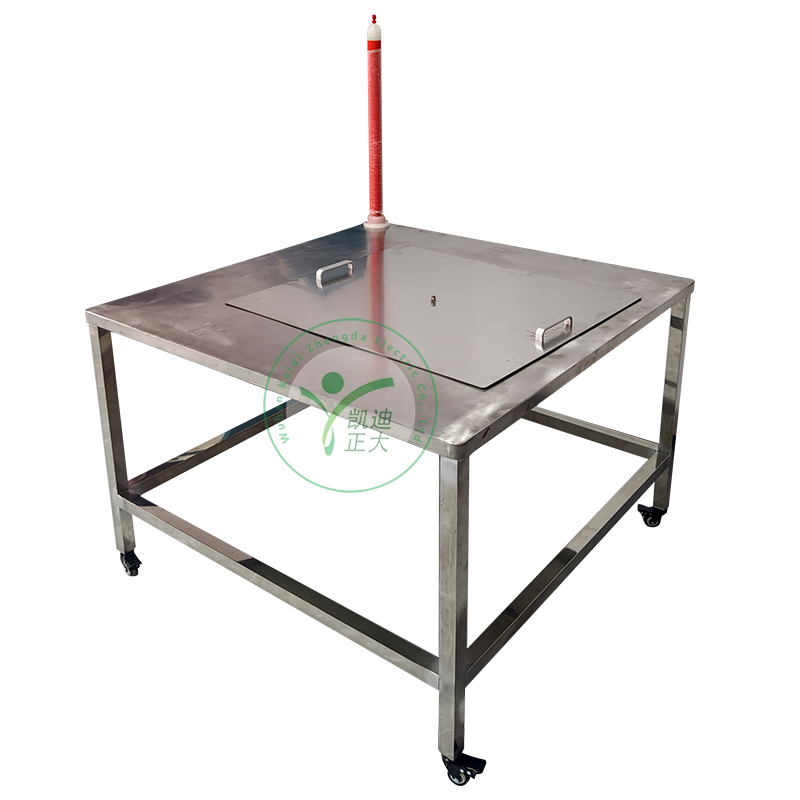

Test platform: It adopts a stainless steel frame and the electrodes are made of stainless steel
Electrode: The electrode is made of stainless steel

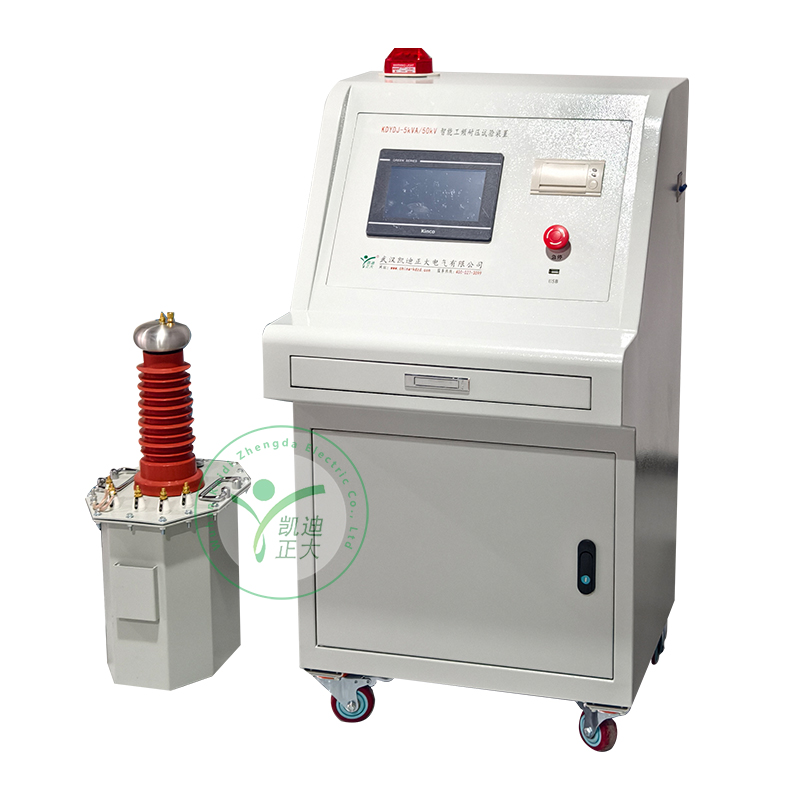

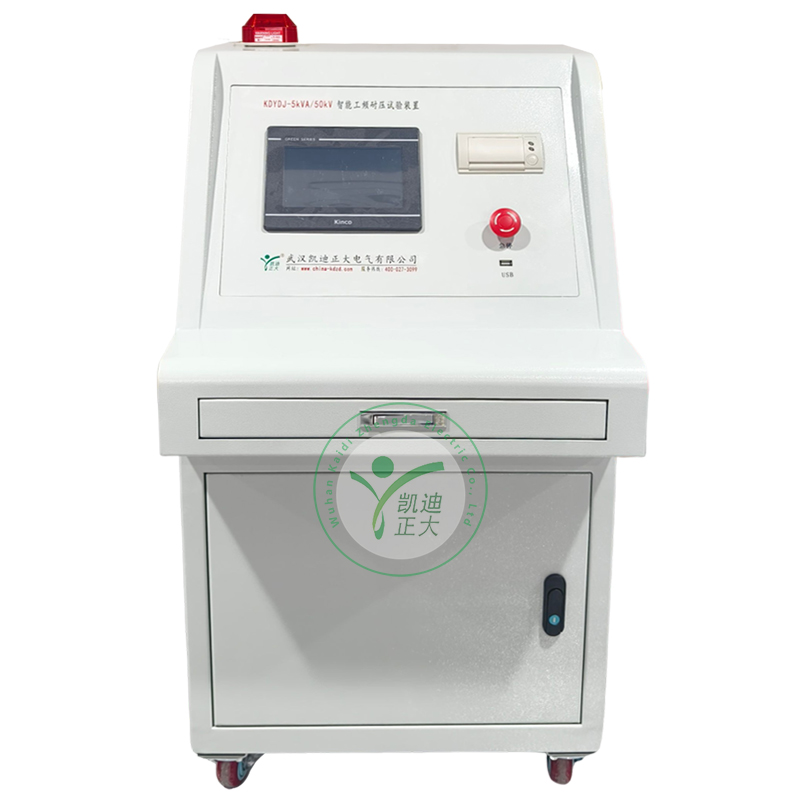

Control unit: Intelligent control box, supporting touch screen operation, parameter setting and wireless data transmission
High-voltage output: The inner electrode is connected by a dedicated high-voltage wire
Parameter:
Technical parameters
Power supply voltage: AC 220V
Capacity: 0-5kVA
Output voltage: Console 0- 250V; Transformer: 0-50kV
Voltage accuracy: ± 1%
Current accuracy: ± 1%
Display mode: 7-inch true-color high-definition digital screen
Touch control method: Resistive touch is more accurate
Operation mode: Automatic, manual
Data storage :60 groups
Password: Multi-level permission Settings
The external dimensions of the insulating platform are 1200*1200*700mm
Insulation table test range :800*800mm
The weight of the insulating platform :30kg
Note: Our company customizes products of different specifications and special functions according to the requirements of users.
